Composable Silicon

On a mission to cut the cost and time of custom silicon by 1000x.

Custom ASIC FPGA Zero ASIC
Development cost $100M$10K$10K
Time to hardware yearsmonthsdays
Performance per watt 1x0.1x1x
Unit cost at volume LowHighLow

Custom ASIC: aerospace and defense SoC, approximated from public data. FPGA: high-end device at typical distributor pricing and lead times. Zero ASIC: forward-looking targets. Development cost is NRE.

00

The $100M Problem

Modern chip design is death by a billion paper cuts. While AI is starting to accelerate RTL, verification, and physical design, fabrication puts a hard limit on the minimum cost and time.

$100M / 3 years per chip

  • Hundreds of specialists who take years to recruit and train
  • $20M+ mask costs and 6-month fabrication times at advanced nodes, even for the simplest chip
  • In the age of AI, custom chips are obsolete by the time they ship
monolithic_asic.plan Specification RTL design Verification Physical design Masks + fab Package Board + bring-up 0mo12mo24mo36mo $100M 3 years
01

The Solution: Composable Chiplets

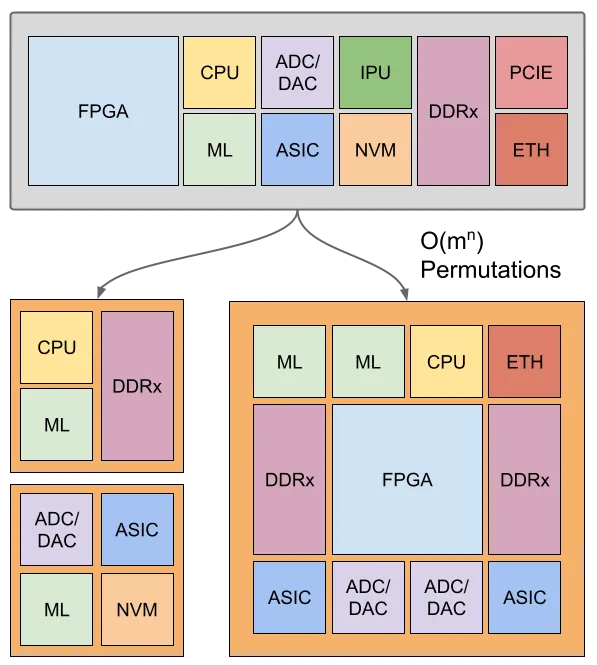

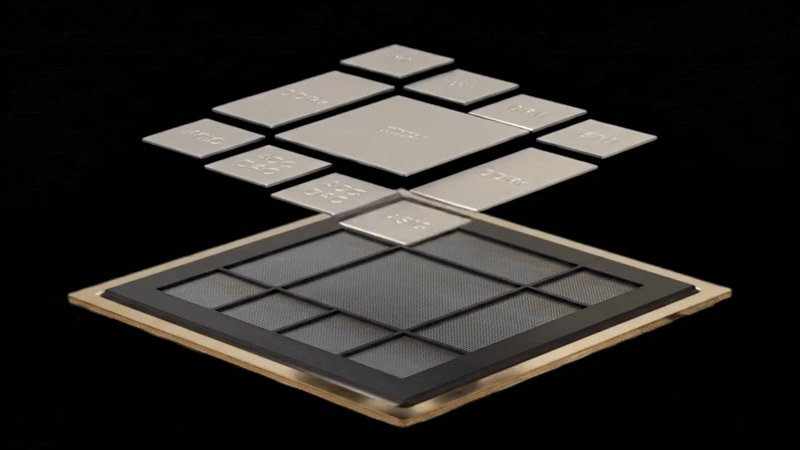

To reduce the chip design barrier to zero, we transform chip design into a physical assembly exercise. A library of standard off-the-shelf chiplets placed on a smart silicon substrate enables trillions of custom silicon system configurations.

6 bricks, 16 sockets = 6^16 = 2.8 trillion unique systems

  • Terabit-scale communication bandwidth
  • Sub-0.1 pJ/bit D2D energy efficiency
  • Standard chiplet sizes as small as 2 x 2 mm
  • Four tapeouts completed in 12nm
library / ebrick CPU 2mm FPGA 2mm NPU 2mm SRAM 2mm NVM 2mm CACHE 2mm efabric / 16 sockets CPU SRAM SRAM CPU FPGA NPU NPU FPGA FPGA NPU NPU FPGA CPU NVM CACHE CPU drag bricks onto the fabric 16/16 sockets filled 616 systems
02

Customer-Driven Emulation

The hard part of custom silicon is not RTL verification; it is validating that the system works for every use case. With trillions of possible chiplet combinations, no one can test them all in advance. To address this problem, we built an emulator that lets customers run their own workloads on bit-exact models of their system before the first build.

  • Real-time user interactivity
  • Emulation builds in minutes
  • Co-simulation of RTL, FPGAs and fast models in one system
  • 15-minute million-core emulation demonstrated
switchboard / emulation (schematic) $ emulate system --firmware app.elf load ebrick models into efabric ...... ok boot firmware ........................ ok run application ...................... ok compare against system spec bandwidth latency throughput power meets spec go to 03: assemble misses spec go to 04: compile N+1 schematic; see Switchboard for real runs PASS: assemble FAIL: compile N+1
03

Automated Robotic Assembly

Pre-fabricated bricks, substrates, and packages designed to a rigid set of standards enable rapid, low-cost assembly of bespoke "N=1" systems.

  • BOM dictates chiplets and substrate included in the build
  • X/Y placement dictates location of each chiplet
  • Automated pick-and-place assembly
  • Drop shipment to customer
04

Chiplet Customization

Our core chiplet library follows the 80/20 rule: a small set of chiplets covers most applications. Customers with extreme performance requirements can create custom chiplets with our eBrick design generator and automated RTL2GDS flow. The new chiplet joins the library and goes through the same assembly flow.

  • Configurable, correct-by-construction eBrick RTL generator
  • Process-portable Lambdalib based design
  • 24-hour RTL2GDS compile times
  • Validated in 12nm

Democratizing silicon.

When chips cost a thousand times less and arrive in a day, every hard problem gets its own custom chip.
